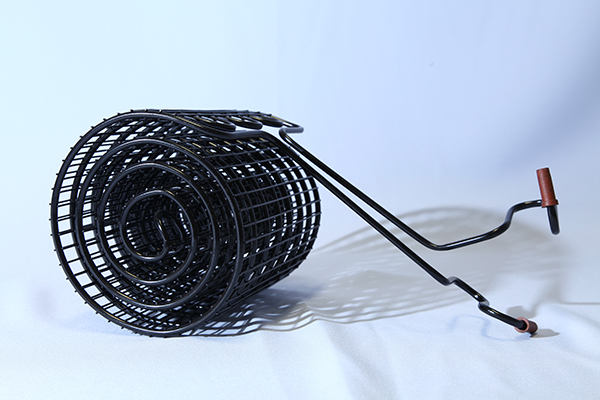

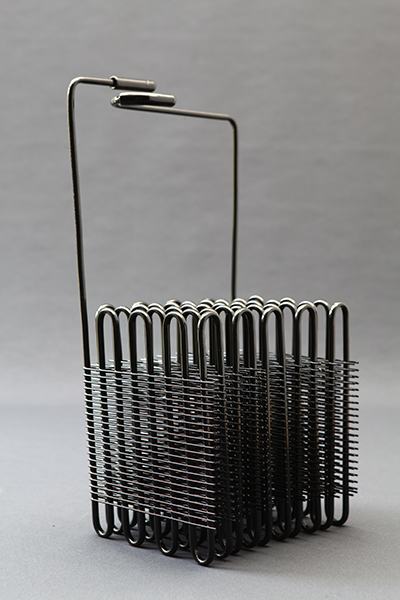

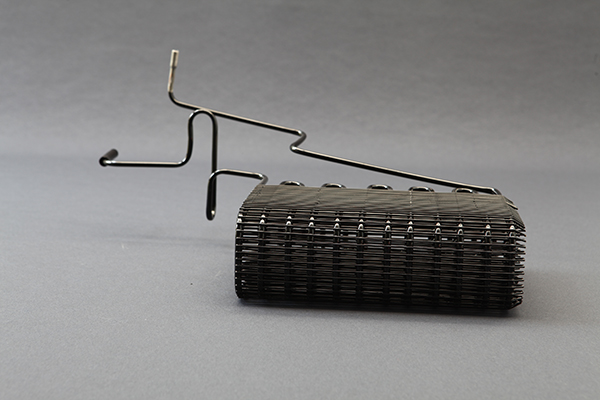

WIRE-ON-TUBE
Bundy Refrigeration supplies advanced geometry dynamic wire-on-tube condensers that offer high performance in a compact design. Our engineers work closely with customers to understand the unique requirements of each application before recommending a specific design configuration.
» Cost efficient wire-on-tube construction
» Optimized for airflow and space constraints
» Supports clean-back design
» Ideal for large capacity systems |
|
|

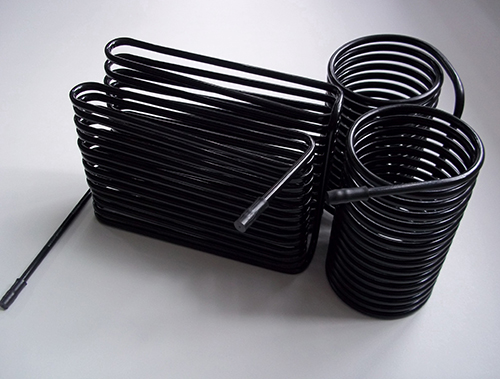

HELICAL
Bundy Refrigeration’s helical condensers are ideal for applications where dirt and debris in the environment are a concern. The “spiral formed” tubing and smooth finish provide a low-maintenance condenser for chest freezers, display cases and other outdoor or commercial installations.
» Compact design
» Low maintenance
» Clean-back installations |
| WIRE-ON-TUBE |
CUSTOMIZED FORCED VENTILATION
ACCORDING TO CUSTOMER DESIGN |
| Raw Material |
| Tubing |
Electricwelded steel tube as per SAE J526 - Jan/2000 |
Standard: Ø4,76 ± 0,08 x 0,71 ± 0,13mm Ø7,94 ± 0,08 x 0,71 ± 0,08mm |
| Wire |
Low carbon steel wire |
| Standard: Ø1,40 ± 0,04mm |
| Finish |
Standard: black e-coat painting |
| Resistance to red corrosion: 140 hrs salt-spray according to ASTM B117 |
|
|
| Custom design specifications are available upon request. Please contact the sales department. |
|
SUGGESTED CHARACTERISTICS FOR GUIDING CUSTOMIZED DESIGN
| Standard Radius |
Tube Diameter
(mm) |
Pitch
(mm) |
Layer Radius
(mm) |
Suggested Number
of Tubes |
Maximum Number
of Tubes |
Layer Width (mm) |
Number
of Layers |
| (Inch) |
(mm) |
| 1/2 |
12,70/13,20 |
7,94 |
25,40/26,40 |
18,00 |
6 to 10 |
10 |
200 to 300 |
2 to 4 |
| 1/2 |
12,70 |
4,76 |
25,4 |
12,70 |
6 to 10 |
10 |
150 to 250 |
2 to 7 |
Custom design specifications are available upon request. Please contact the sales department. |
|
| HELICAL |
CUSTOMIZED CONDENSER |
| Raw Material |
| Tubing |
Electricwelded steel tube as per SAE J526 - Jan/2000 |
Standard size (OD): 9,52mm (3/8 inch)
Other available sizes: 4,76; 6,35; 7,94mm (3/16, 1/4, 5/16 inch)
*See Tubing data sheet for detailed specification |
| Finish |
Standard: black e-coat painting |
| Resistance to red corrosion: 140 hrs salt-spray according to ASTM B117 |
| Custom design specifications are available upon request. Please contact the sales department. |

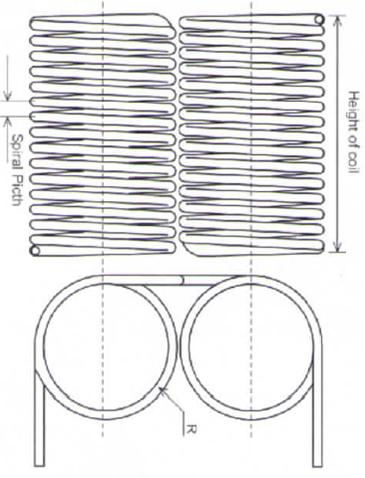

CUSTOMIZED CONDENSER
Tower
Radius
(mm) |
Spiral
Pitch
(mm) |
Number
of Coils |
Maximum
Height
(mm) |
| 41 |
15 |
1 or 2 |
600 |
| 56 |
15 |
1 or 2 |
600 |
| 62 |
15 |
1 or 2 |
800 |
|
 |
|
